LiTime 12V 100Ah Group 27 Bluetooth LiFePO4 Battery with 14.6V 20A Charger 100A BMS for RV, Solar System, Trolling Motors

Ships in two packages.

LiTime Bluetooth 5.0 12V 100Ah Group 27 lithium battery adopt EV-grade Cell, and insist on providing the customer with an environmentally friendly green power solution. LiTime 12V 100Ah Group 27 lithium battery compatible with the Group27 battery box，requiring no additional operation or intricate wiring.This battery built in a Low-temp cut-off battery management system (BMS). BMS provides all kinds of protection for the battery and customer, equipped with Over charge and short circuit protection. Lighter and longer life span with 4000-15000 cycles makes this the ideal battery for all your Deep Cycle applications, such as, Solar / wind energy systems, Off Grid systems, RV, Camping, Backup power systems and much more.

SPECS

BATTERY

1. Cell Type：LiFePO4
2. Warranty�? Years
3. Cycle Life�?000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
4. Nominal Voltage�?2.8V
5. Rated Capacity�?00Ah
6. Energy�?280Wh
7. Max. Expansion (Parallel & Series)�?P4S
8. Internal Resistance：≤40mΩ
9. Certifications：UL-1973,FCC,CE,RoHS,UN38.3,FCC ID
10. Bluetooth：Yes

BMS

1. BMS�?00A
2. Max. Continuous Charge Current�?00A
3. Max. Continuous Discharge Current�?00A
4. Max. Discharge Current 1 Second�?00A

CHARGE

1. Charge Method：CC/CV
2. Charge Voltage�?4.4V ± 0.2V
3. Recommend Charge Current�?0A (0.2C)

TEMPERATURE

1. Charge Temperature�?�?to 50�?/ 32�?to 122�?/li>
2. Discharge Temperature�?20�?to 60�?/ -4�?to 140�?/li>
3. Storage Temperature�?10�?to 50�?/ 14�?to 122�?/li>

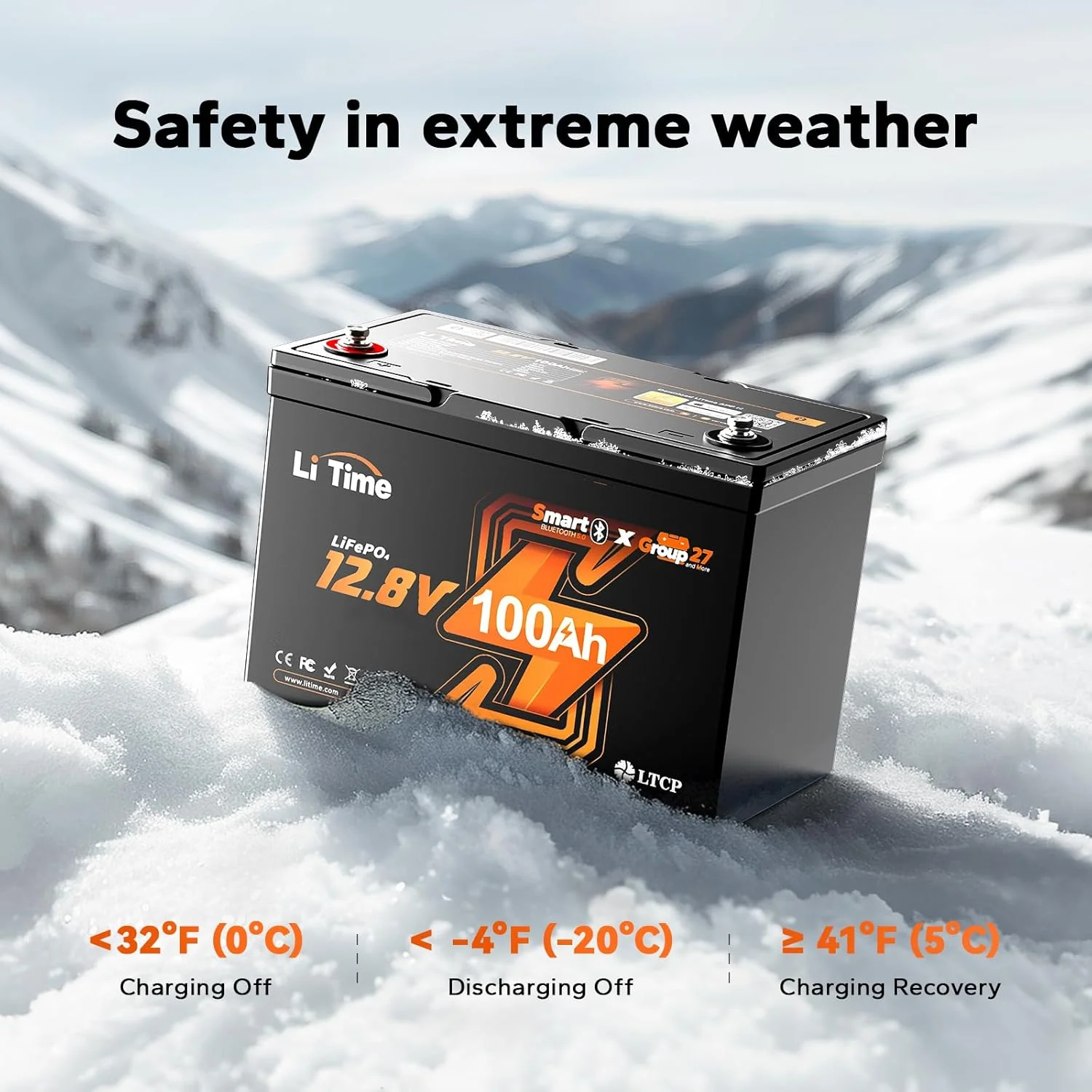

4. Low-Temperature Protection：Yes (32�?0�?
5. Low-Temperature Charging Protection Auto Recovery：Yes (41�?5�?

OTHERS

1. Terminals：M8 bolts
2. Weight Approx.�?2.85lbs
3. Size�?2.13*6.69*8.31 in
4. Housing Material：ABS
5. Protection Class：IP65

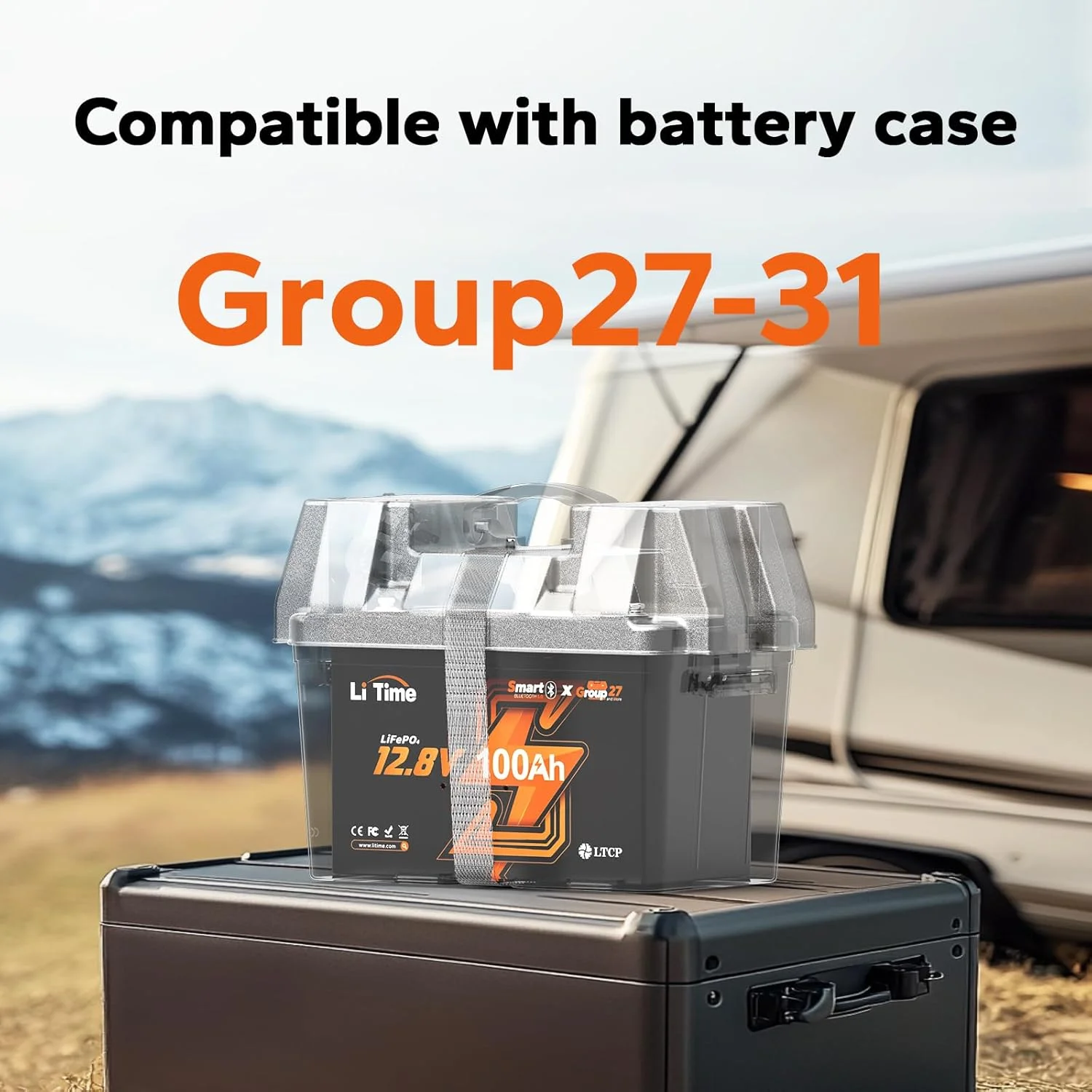

• Group 27 Compatibility: Perfect fit for Group 27-31 battery compartments, and ideal for seamless RV, and kayak installation.
• Smart Bluetooth: Real-time battery status tracking and smart control via LiTime APP.
• RV-Specific Size: Tailored for RV models with Group 27 compartments, including Brinkley Z 2900, Four Winds 22E, and Forest River Forester, etc.
• 20+ BMS Protection: Self-developed BMS, with advanced protections, such as moisture-proof, and salt-spray resistance, pre-charge function, and overload protection with auto-recovery (30s).

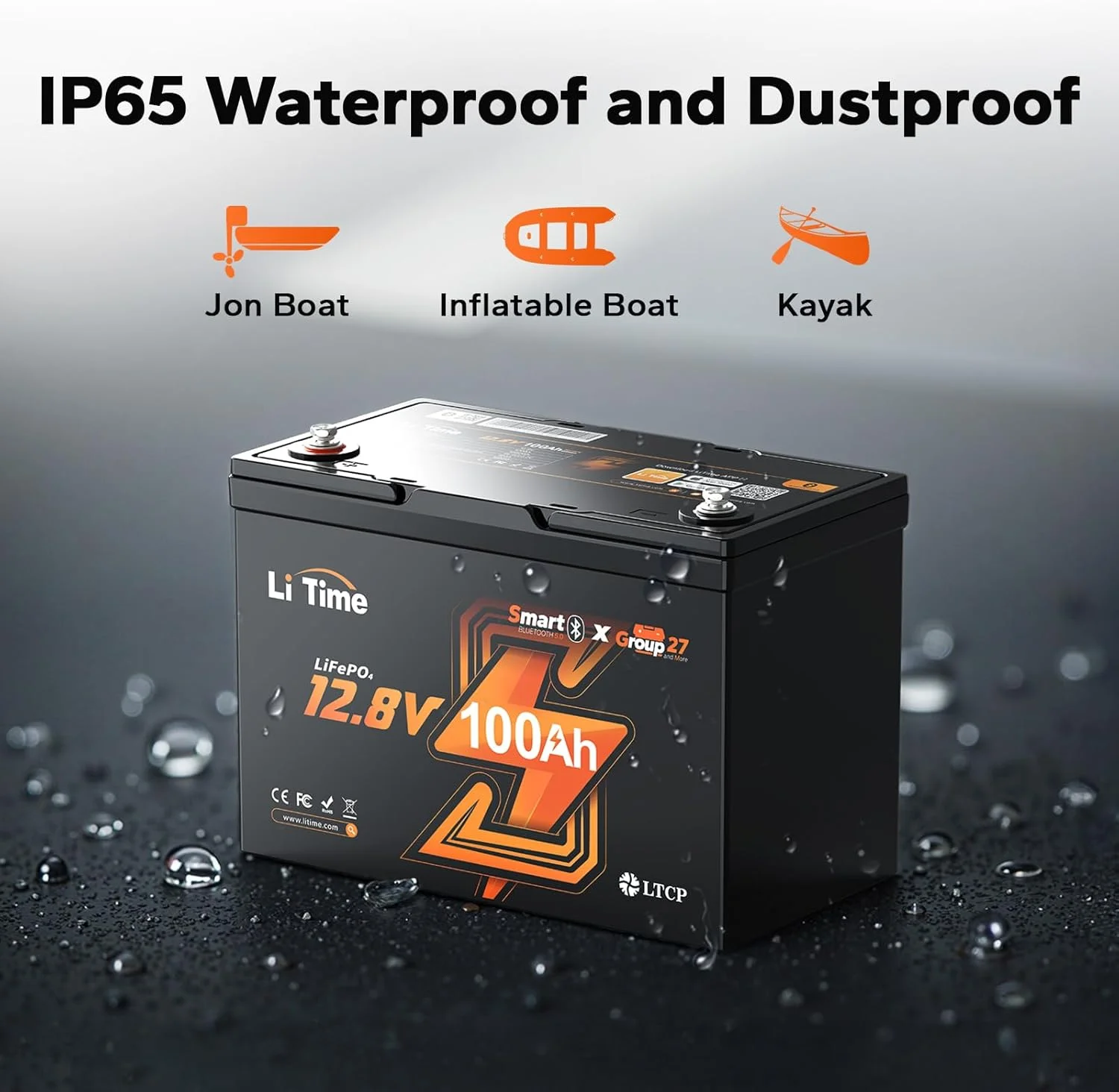

• All-weather Protection: With low-temp cut-off protection and IP65 waterproof & dustproof, suitable for harsh environments.
• EV-grade Cell: 4000+ cycles@100% DOD, 10-year lifespan, eco-friendly, and high consistency.
• Max. 4P4S: Up to a 51.2V 400Ah; 20.48kWh energy & 20.48kW max. output power.
• Multi-Application: Suitable for RVs, Marine, Trolling Motor, Off-grid, Home Backup Power, etc.
• Tips: After first receiving the battery or switching it off, you need to charge the battery using a lithium-activation charger or an MPPT charger to activate the Bluetooth function. This battery is not suitable for starting batteries, golf cart batteries, or jacks.
